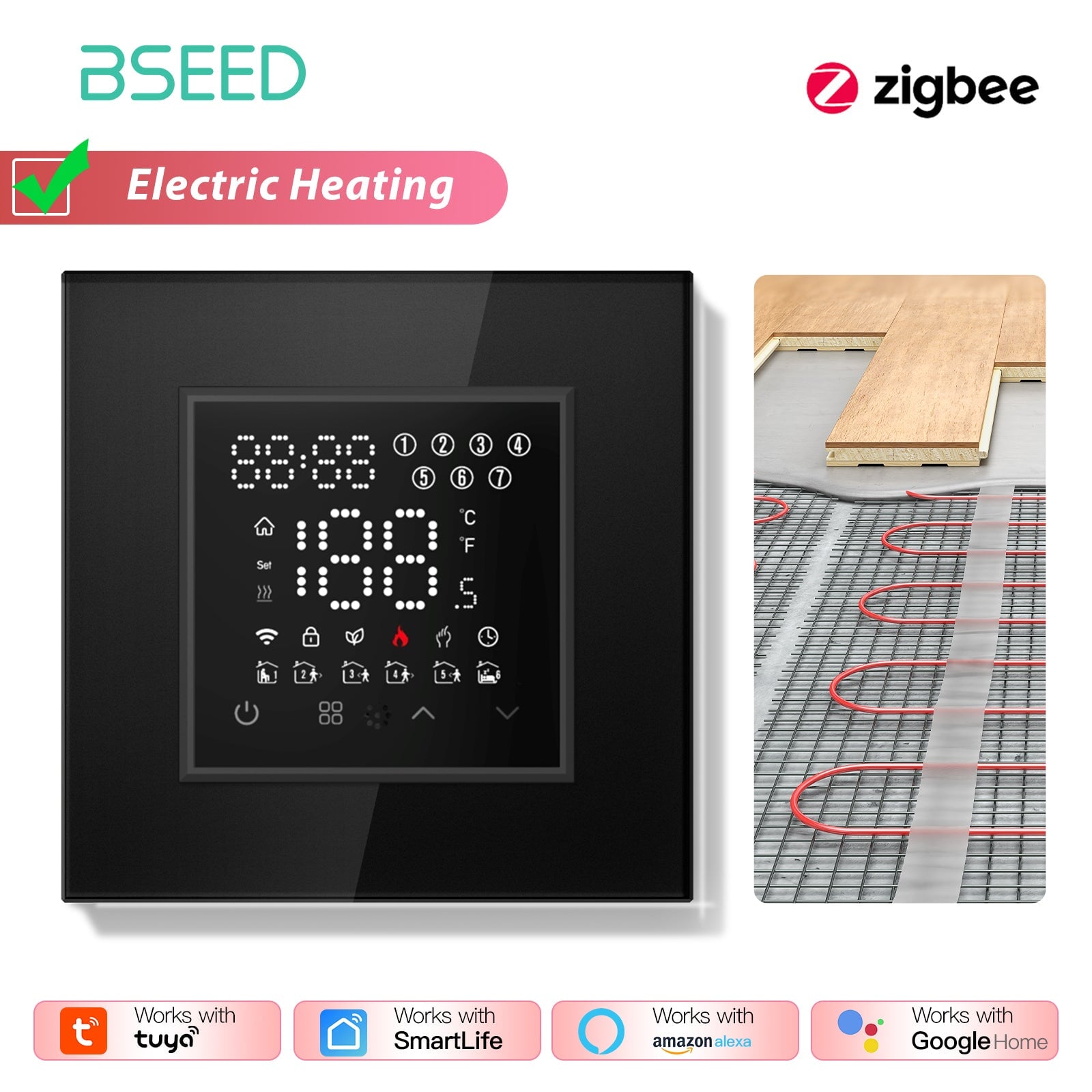

BSEED Echo Series Smart Zigbee Touch LED Screen Floor Heating Room Thermostat Controller Thermostats Bseedswitch Black Electric
BSEED Echo Series Smart Zigbee Touch LED Screen Floor Heating Room Thermostat Controller Thermostats Bseedswitch White Electric

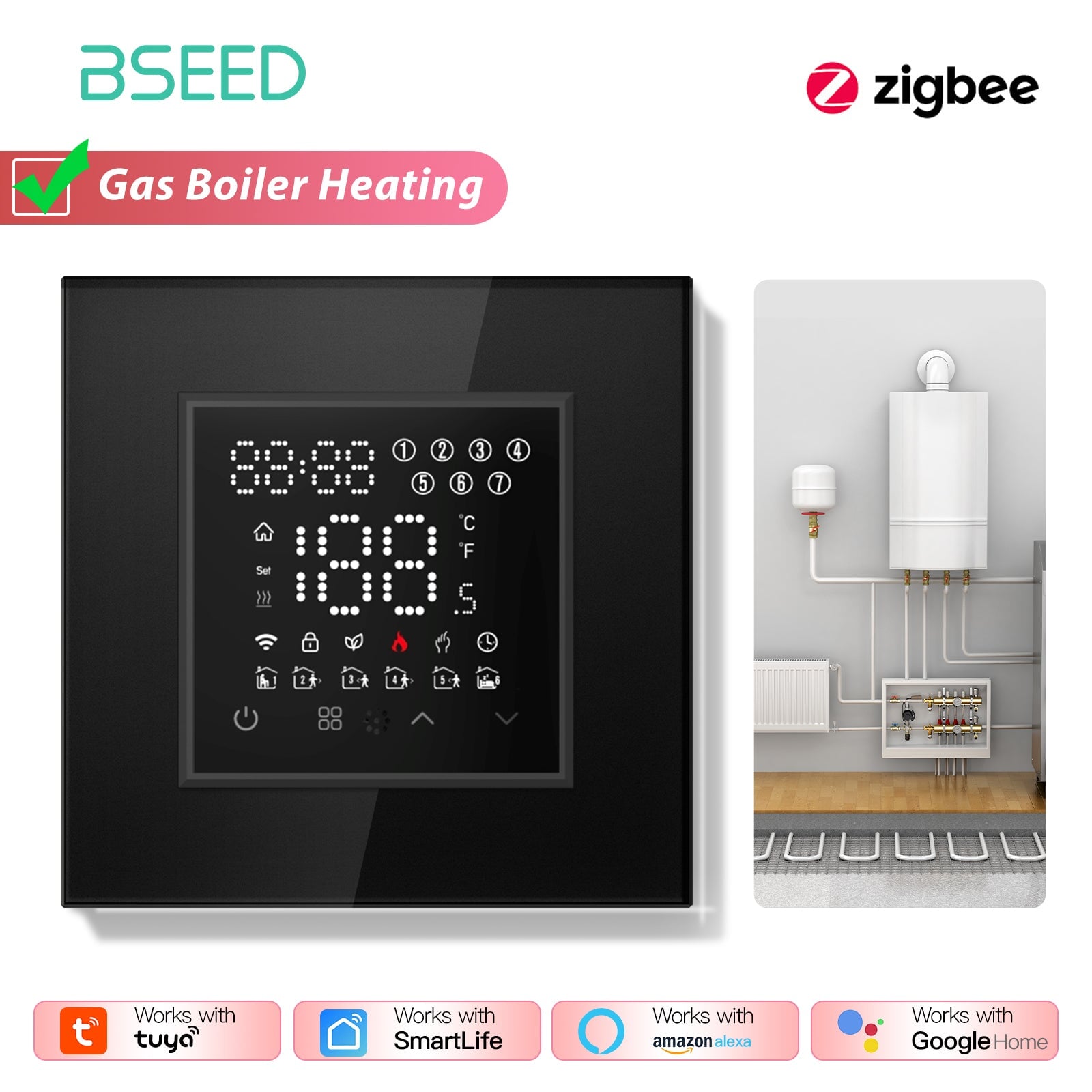

BSEED Echo Series Smart Zigbee Touch LED Screen Floor Heating Room Thermostat Controller Thermostats Bseedswitch Black Boiler

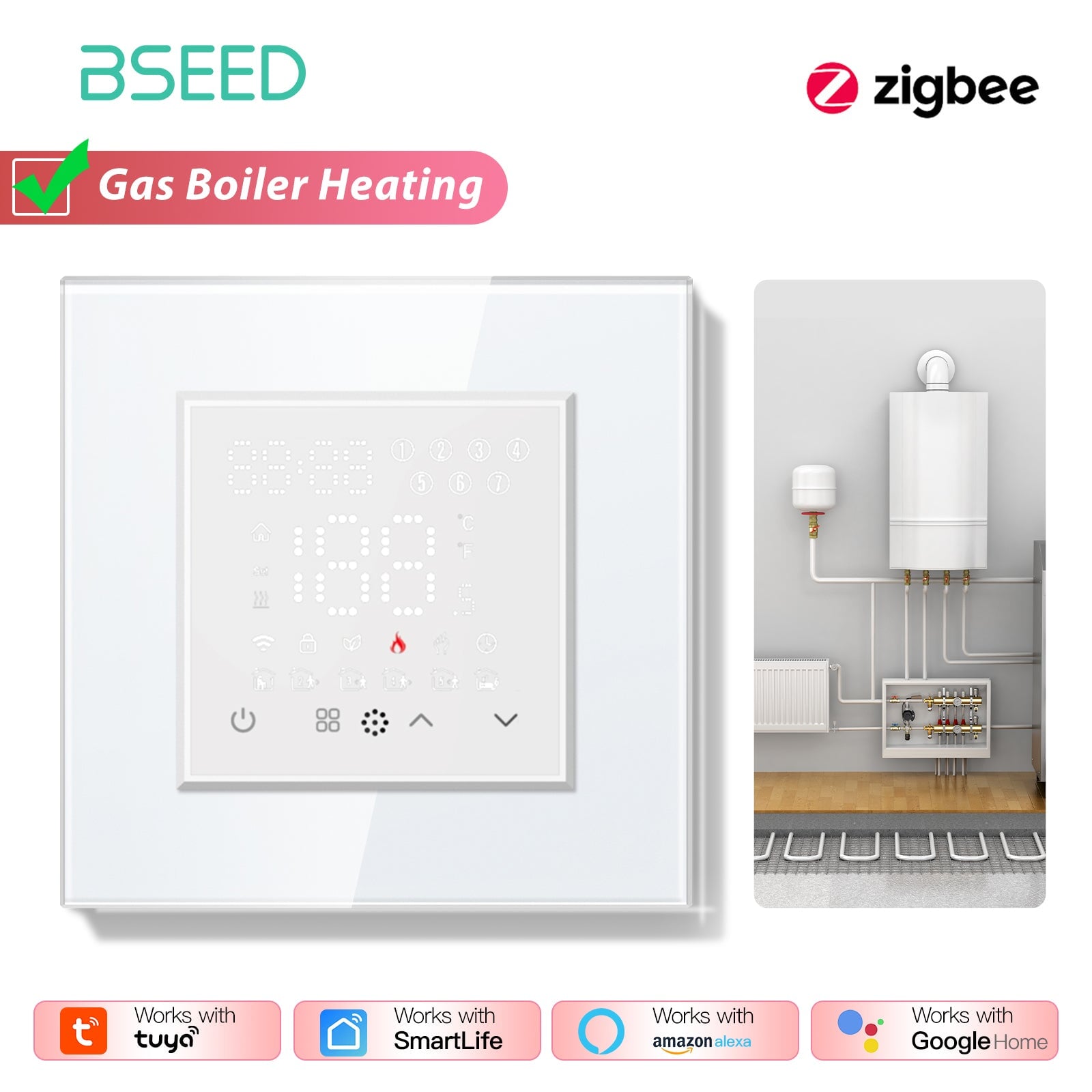

BSEED Echo Series Smart Zigbee Touch LED Screen Floor Heating Room Thermostat Controller Thermostats Bseedswitch White Boiler

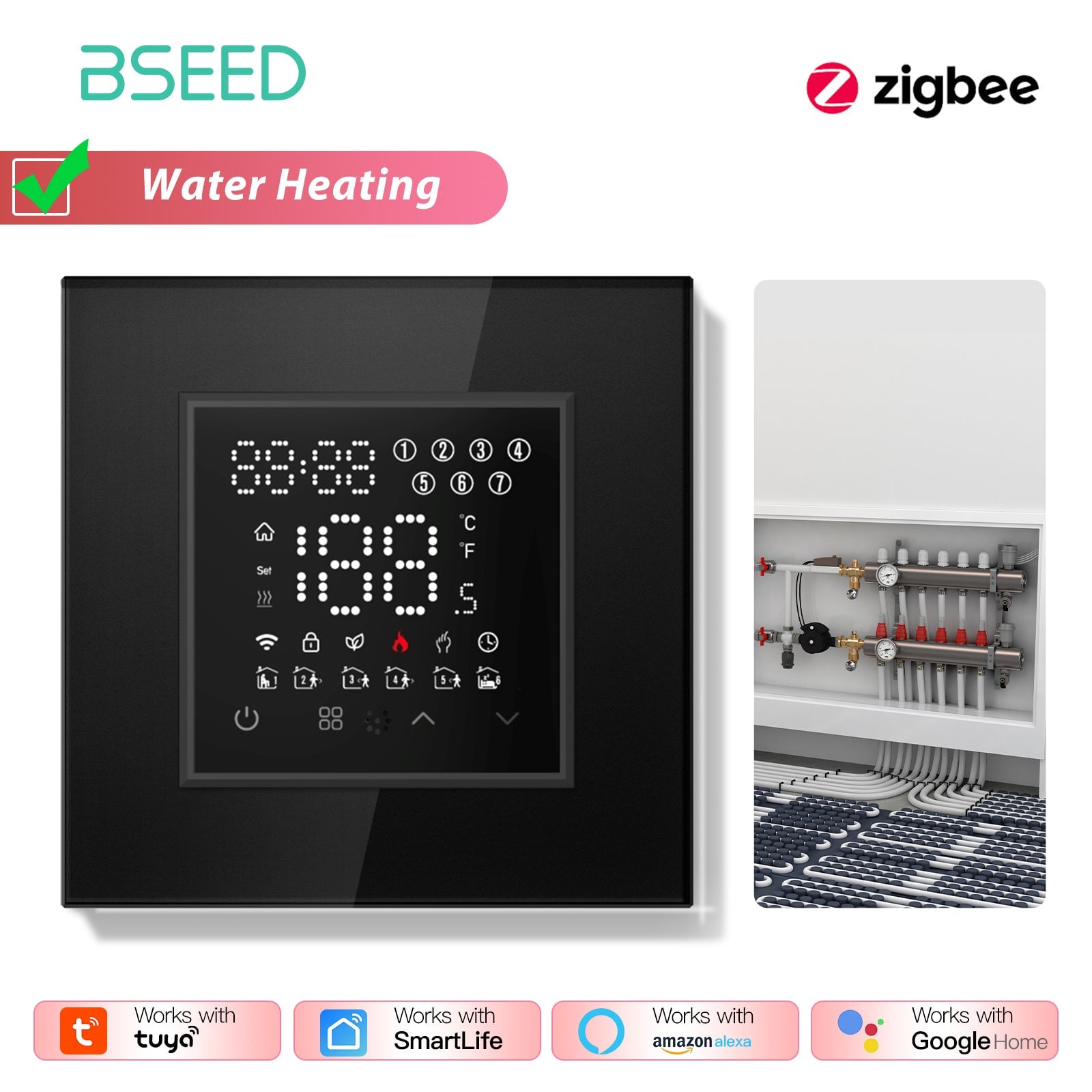

BSEED Echo Series Smart Zigbee Touch LED Screen Floor Heating Room Thermostat Controller Thermostats Bseedswitch Black Water

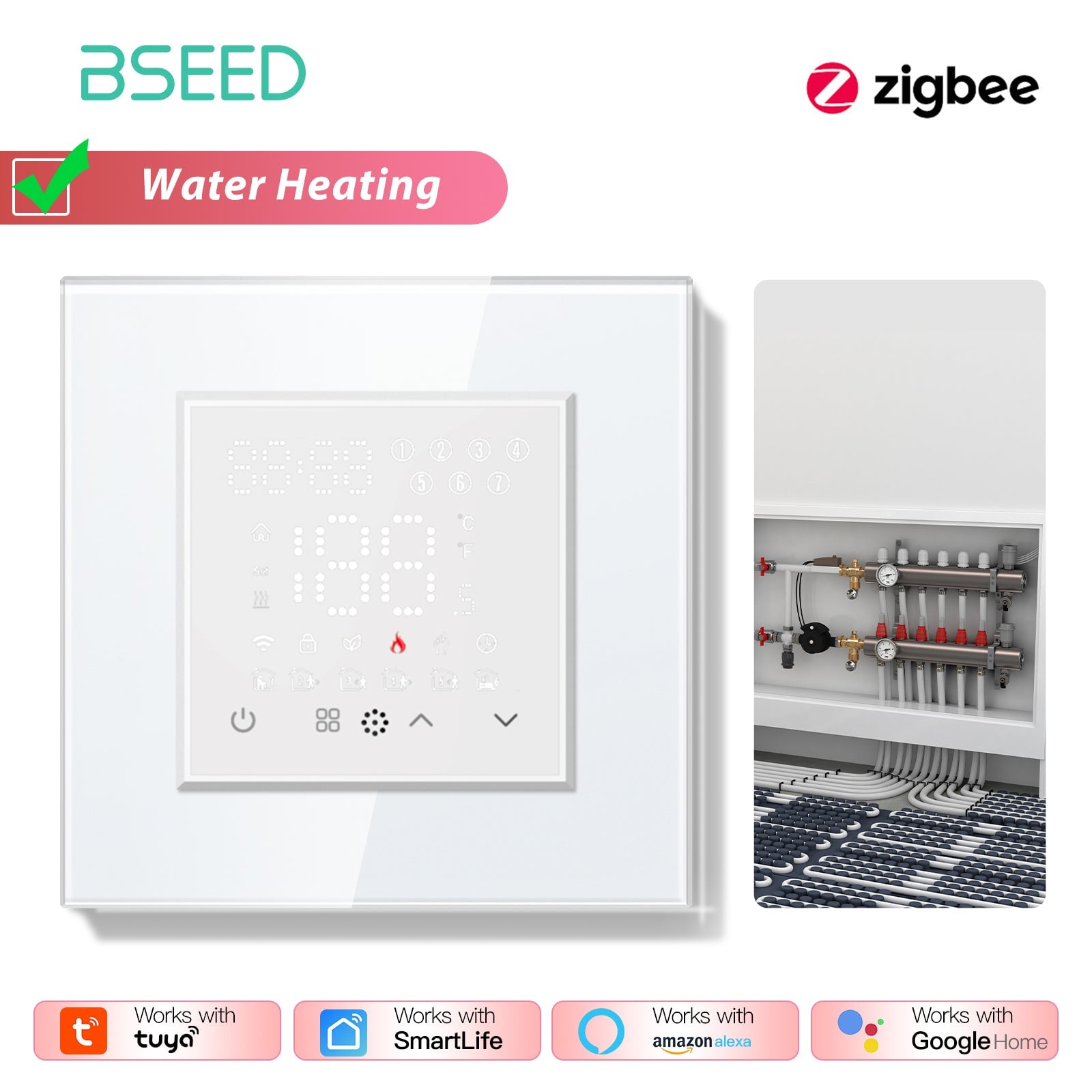

BSEED Echo Series Smart Zigbee Touch LED Screen Floor Heating Room Thermostat Controller Thermostats Bseedswitch White Water

Atendimento ao cliente instantâneo

Reembolso em 30 dias

Envio gratuito

Garantia de 1 ano

ET-GL86HTEZ1B-ES1

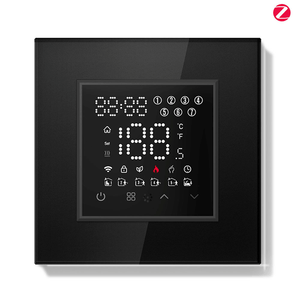

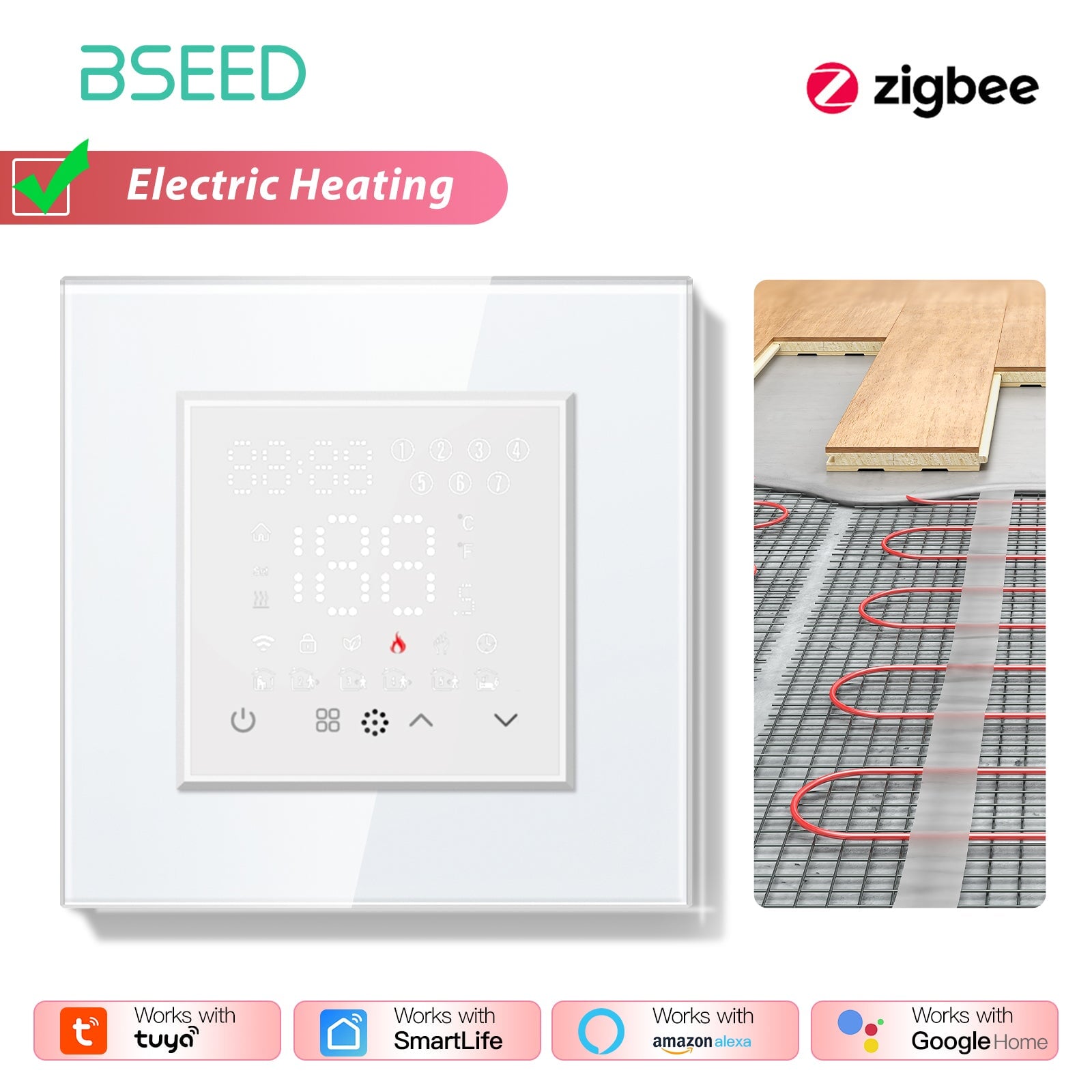

BSEED Echo Series Smart Zigbee Touch LED Screen Floor Heating Room Thermostat Controller

Sale preço€30.63 Preço regular€35.08 Save:€4.45 (13% OFF)
CÓDIGO DE DESCONTO
CÓDIGO DE DESCONTO
12% OFF
Para a sua primeira encomenda
subs12
COPY
COPIED
10% OFF
Encomenda superior a €299
ORDIN10
COPY
COPIED
15% OFF
Encomendas acima de €499
ORDIN15
COPY
COPIED
18% OFF
Encomenda superior a €999
ORDIN18
COPY
COPIED
Color:Black
Type:Electric
In stock
Visa Mastercard Maestro American Express Apple Pay Diners Club PayPal JCB Google Pay Klarna

Features


1. The strict temperature control accuracy (± 0.5 ℃) provides the warmth you want;
2. Power off protection, safely save all your settings;

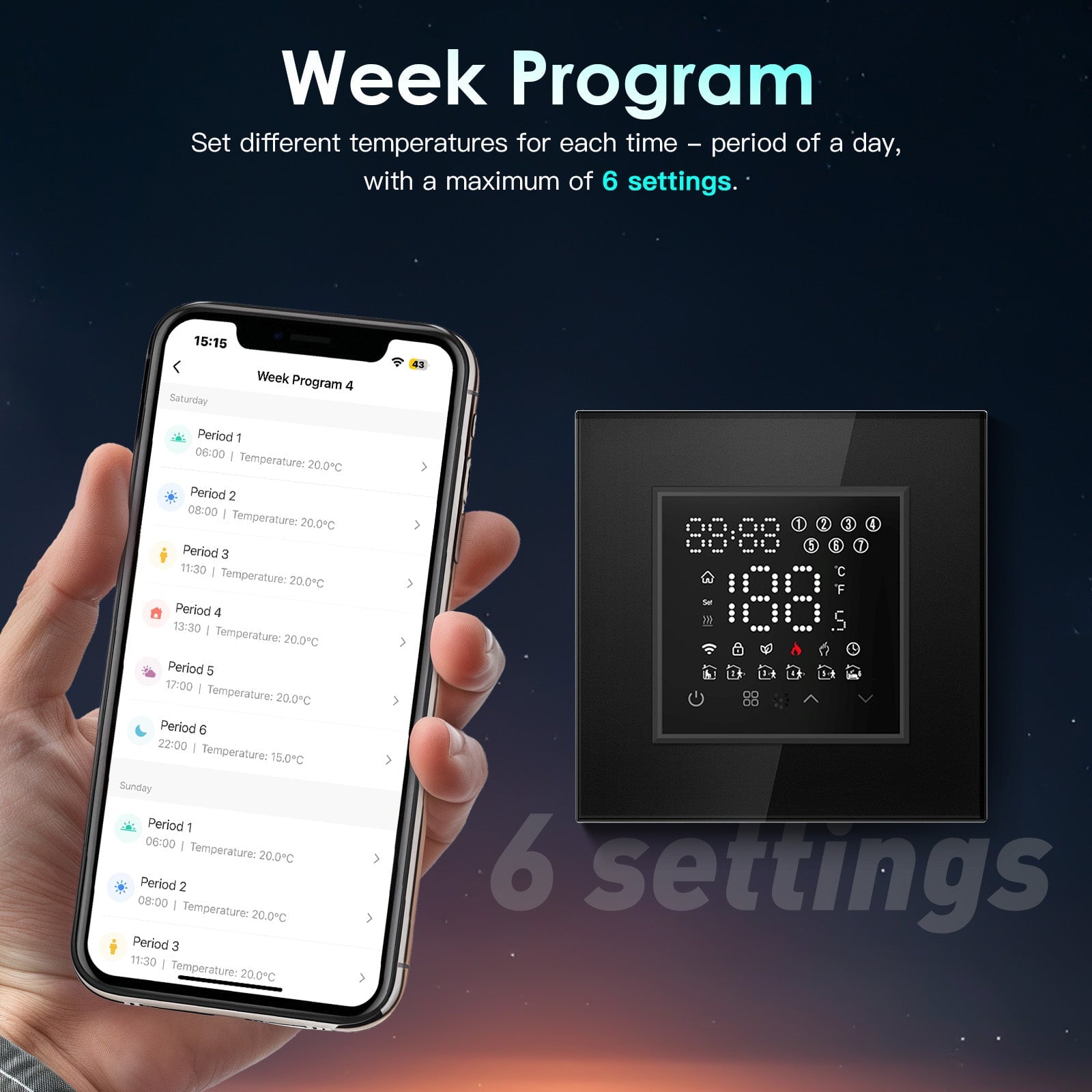

3. The 5+2 mode of a week is preset for adjustment, and the four time periods of a day can be programmed. It is green, energy-saving, less costly, and more intelligent and environmentally friendly;
4. Support the creation of local product groups/shares to achieve unlimited centralized control/multi terminal control of product quantity;
5. Perfect access: Tmall Genie, Amazon echo, Google Home, experience a new voice control mode;

Especificação

Product Introduction:
Brand Name:
BSEED
current:
50/60Hz
Max. Strom:
5A(water heating/water boiler/gas boiler) 16A (electric heating)
Max. Spannung:
90-240V (AC)
Sensor:
NTC
Temperature Error:
±0.5℃
Time Error:
<1%
Temperature Control Range:
5~35℃
Screen:
negative LCD screen
Key type:
Capacitive Touch Key
Wireless Consumption:
≤0.5W
Power Consumption:
<1.5W
Shell Material:
PC+ABS (flame retardant)
Ambient /Humidity:
5~95%RH (non condensing)
Working Temperature:
0~45℃
Waterproof Level:
IP20
WiFi Frequency:
IEEE802.11 b/g/n
WIFI Standard:
Wifi 2.4G Hzb/g/n
APP:
Tuya / Smart Life
Voice Control:
Google Home, Amazon Alexa
Energy Monitoring:
Not Support
Warranty:
1 year
Certification:
CE, RoHS
Module Shape:
Square
Wall Box Type:
Round & Square
Installation Box:
European 503 Box,86 TYPE Box
Wall Box Depth:
≥40mm
Wall Box Diameter::
≥60mm

Certificate

Manual e Mais

Simple Operation And Easy Installation
Step1 Assemble insert parts and metal plate (note: push the insert parts into metal plate from the front side).

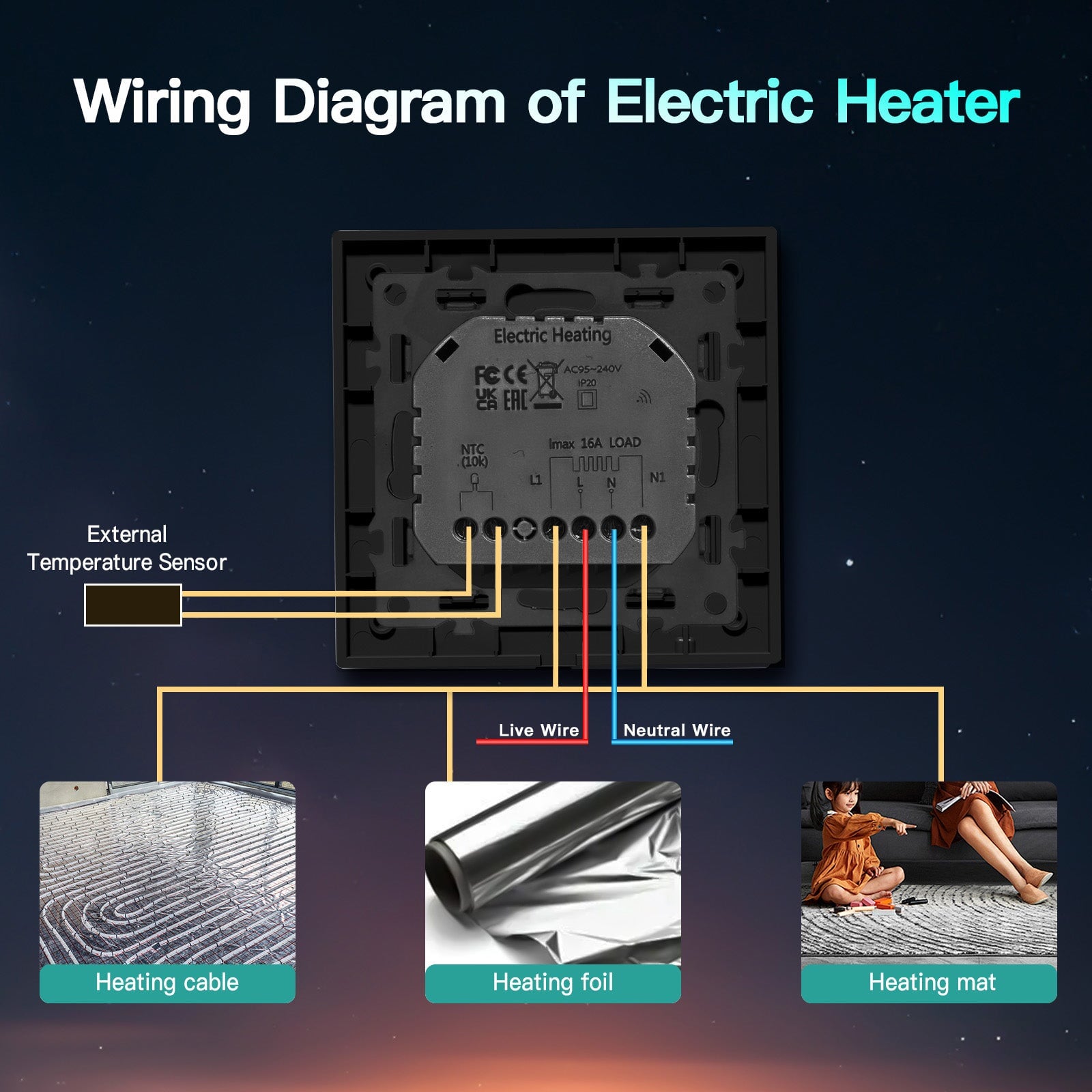

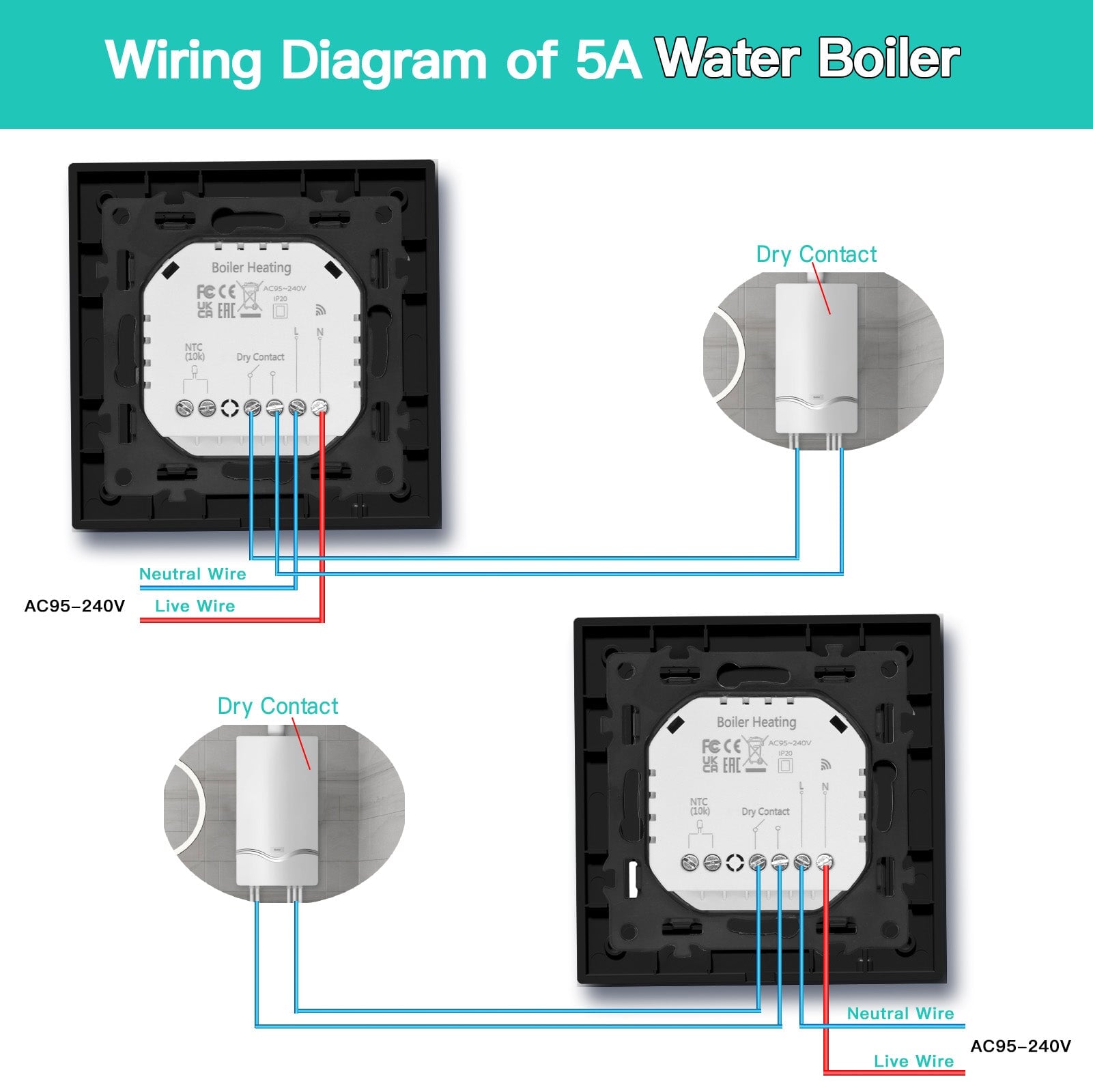

Step2 Follow the wiring instructions to connect the wires.
Step3 Screw to fix the switch to the wall box.
Step4 Push the glass panel onto the device and finish the installation.
Product Installation Video Tutorial
Download

Lista de Embalagem

BSEED Echo Series Smart Zigbee Touch LED Screen Floor Heating Room Thermostat Controller Thermostats Bseedswitch
Product * 1
Free
Screw Spike * 2
Free
Manual do Utilizador * 1
Free
Package * 1
€29.08
€24.57
€22.57
€170.24
€19.09
SHOW MORE
SHOW MORE

How to choose?

How to install a floor thermostat: Connect the wires correctly according to the instructions.

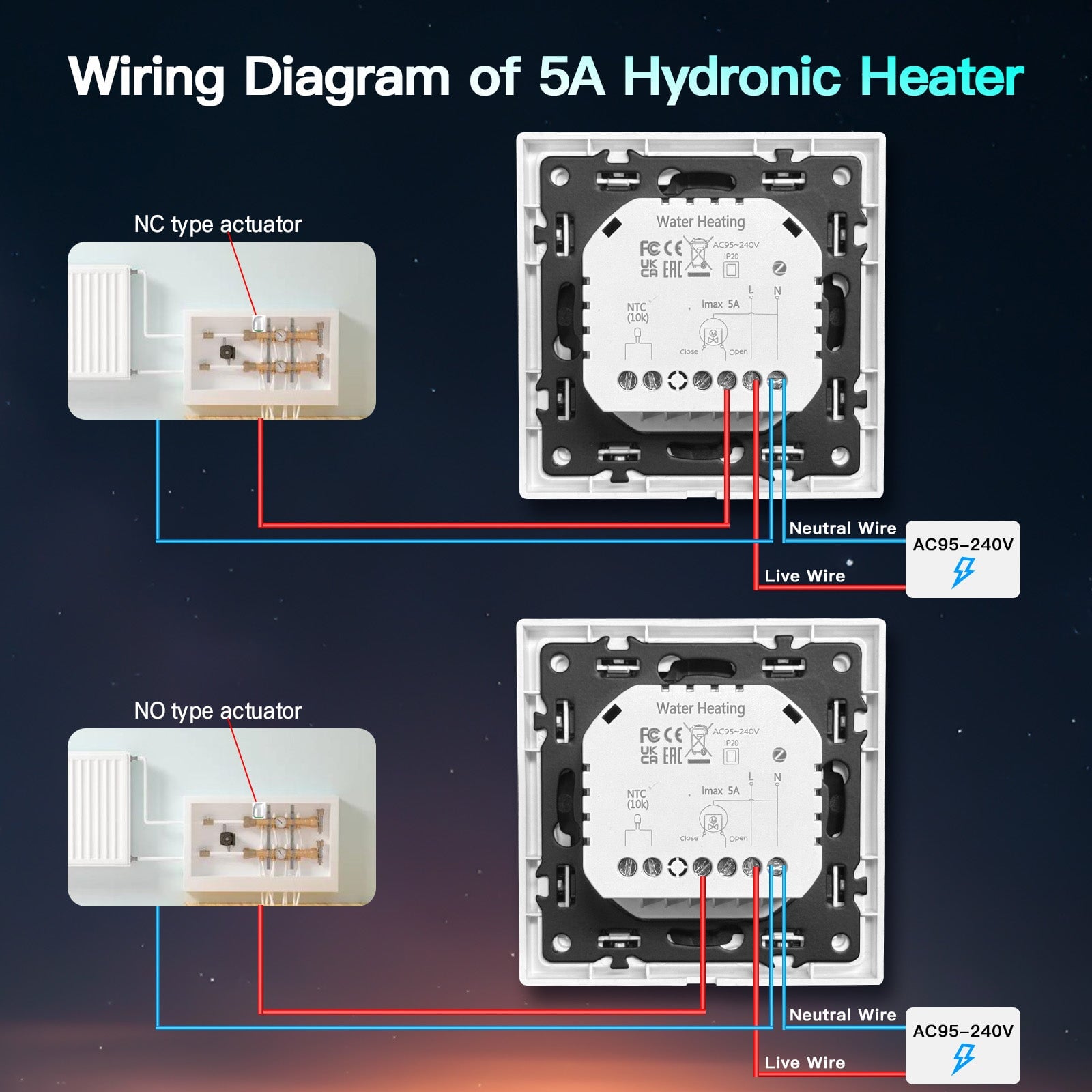

How to distinguish the types of floor heaters: Underfloor heating systems are categorized into electric, water-based, and boiler-based systems. The primary way to differentiate them is by examining the heating device installed under the floor. Electric heating systems are suitable for underfloor installations such as heating cables, heating films, heating tiles, and thermal mural systems. Water-based systems are used to connect to NC/NO type actuator systems. Boiler-based systems are used to control the boiler heaters.
What are the differences between different heating systems: Electric heating heats up and dissipates heat quickly, making it suitable for small areas and localized heating. Installation is simple and maintenance is convenient.
Do you need more help?
CENTRO DE AJUDA

BSEED Touch Screen Electric Floor Heating Water Boiler Room Thermostat Zigbee Alexa Google App Temperature Controller Backlight

App Installation:

Download The Tuya Or Smart Life App To Your Smartphone Or Tablet. The App Can Be Downloaded From Apple App Store or Google Play, Then Connect Your App With Amazon Alexa Or Goggle Home Which Enable You To Voice Control Your Lights And Appliances.

Product Introduction:

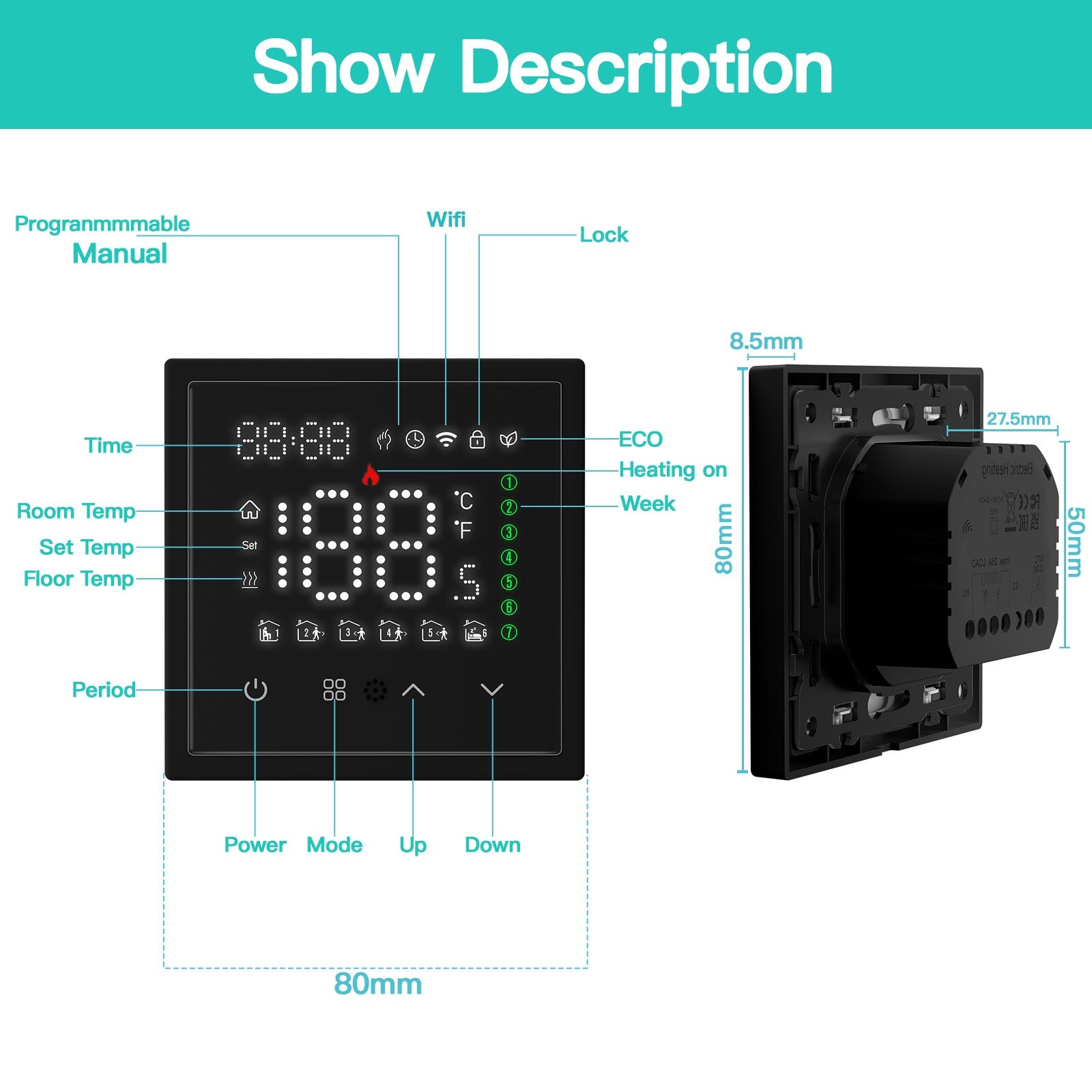

Brand Name:BSEED Size:86×86×35mm
Max. Strom: 5A (water heating/wall furnace/boiler) 16A (electric heating) Sensor: NTC
Temperature error: ± 0.5 ℃ Time error: <1%
Temperature control range: 5~35 ℃ Power: <1.5W
Protection grade: IP20 Screen: LED negative display screen
WIFI Standard: Wifi 2.4GHz b/g/n APP: Tuya/Smart Life
WiFi Frequency:IEEE802.11 b/g/n Material: plastics+Crystal Glass
Key type: capacitive touch key Working temperature: 0~45℃
Relative humidity:5~95% RH (no water vapor condensation) WiFi Frequency:IEEE802.11 b/g/n
Voice Control: Google Home, Amazon Alexa Wire:Need Neutral Wire
Back Light: ON-light Blue OFF-Weak Blue Moduel shape: Round
Wall Box Type: Round & Square

Note: A Regular Touch Switch can only work with another Touch Switch and will not work with other series Switches.
A Bseed 2 way Touch Switch can only connect with another Bseed 2-3 way touch switch.
A Touch Dimmer switch must be connected to another Touch Dimmer Switch.

Note: You have to cut off the power and during the installation.

P: O seu interruptor dimmer pode ser controlado por vários pontos?
R: Sim, o nosso interruptor dimmer atualmente pode funcionar como interruptor dimmer de 2 vias, mas precisa comprar pelo menos 2 unidades (TW-GL86ZTD11, TW-GL86TDI11, GL86TD12)

P: Tem interruptores para controlo multi-ponto?
R: Sim, o nosso interruptor de luz inteligente suporta associação de controlo múltiplo. (Tanto as séries WiFi como Zigbee)

P: O seu interruptor dimmer pode formar uma ligação de 2 vias com um interruptor de luz?
R: Não. O interruptor dimmer só pode ser ligado a outro interruptor dimmer, não podendo formar uma ligação de 2 vias com outros interruptores

P: O seu interruptor inteligente pode ser controlado por voz?
R: Sim. Todos os nossos interruptores inteligentes podem ser controlados por voz através da Alexa, Google Assistant, e alguns interruptores suportam Tmall Genie, Xiaodu, Yandex

P: O que devo fazer se o interruptor não funcionar após instalar o painel superior?
R: Por favor, não ligue a energia ao instalar o painel. Pode tentar desligar a energia e aguardar 30 segundos antes de reiniciar. Verifique a orientação da placa de ferro, o lado com as letras CE e RoHS é o verso

P: O que devo fazer se a luz azul não acender quando o produto está instalado?
R: Por favor, use uma caneta de teste elétrica para verificar se a fiação está energizada

P: O seu interruptor de luz táctil inteligente precisa de fio neutro para instalar?
R: Temos versões diferentes, com e sem fio neutro, suportando múltiplos métodos de fiação

P: O seu interruptor de luz táctil inteligente funciona com Home Kit?
R: Desculpe, o nosso produto não funciona com eles atualmente.

P: O seu interruptor de luz inteligente funciona com Smart Life Tuya ou Google Alexa?
R: Sim, funciona com eles.

P: Oferecem interruptor táctil WiFi de 2 vias?
R: Sim, oferecemos interruptor táctil WiFi de 2 vias, que funciona de forma estável. Mas deve comprar pelo menos 2 unidades de interruptores WiFi de 2 vias. (APP usa função de associação de controlo múltiplo)

P: O seu interruptor tem luz de fundo?
R: A luz de fundo azul acende quando a fiação está correta, permitindo que veja claramente o nosso interruptor táctil no escuro.

P: Os nossos interruptores podem ser instalados na vertical ou horizontal para painel de vidro de 157mm/228mm?
R: Sim, podemos instalar de diferentes formas,

P: Oferecem interruptor táctil de luz de 2 vias?
R: Sim, oferecemos interruptor táctil de 2 vias, que funciona de forma estável. Mas deve comprar pelo menos 2 unidades de interruptores táctil de 2 vias.

P: O que significa 2 vias?
R: 2 vias significa que pode ligar/desligar a mesma luz a partir de diferentes locais.
