GL86HTBI1B

BSEED Melody Smart WiFi Touch LED Screen Floor Heating Room Thermostat Controller Backlight

€34.30
DISCOUNT CODE
DISCOUNT CODE
10% OFF
Order over €299
ORDIN10
COPY
COPIED
15% OFF
Order over €499
ORDIN15
COPY
COPIED
18% OFF
Order over €999
ORDIN18
COPY
COPIED
Color:Black
Type:Boiler
In stock
Visa Mastercard Maestro American Express Apple Pay Diners Club PayPal JCB Google Pay Klarna

Features

  1. 2.4GHz WiFi Connectivity for Convenient Smart Control
    Connect the BSEED smart thermostat to a compatible 2.4GHz WiFi network using IEEE 802.11 b/g/n. Manage supported heating functions through your home network without requiring a separate Zigbee gateway.
  2. Remote Control via Tuya & Smart Life App
    Adjust temperature settings and manage supported thermostat functions directly from your smartphone. Enjoy convenient remote access and integrate heating control into your everyday smart home routine.

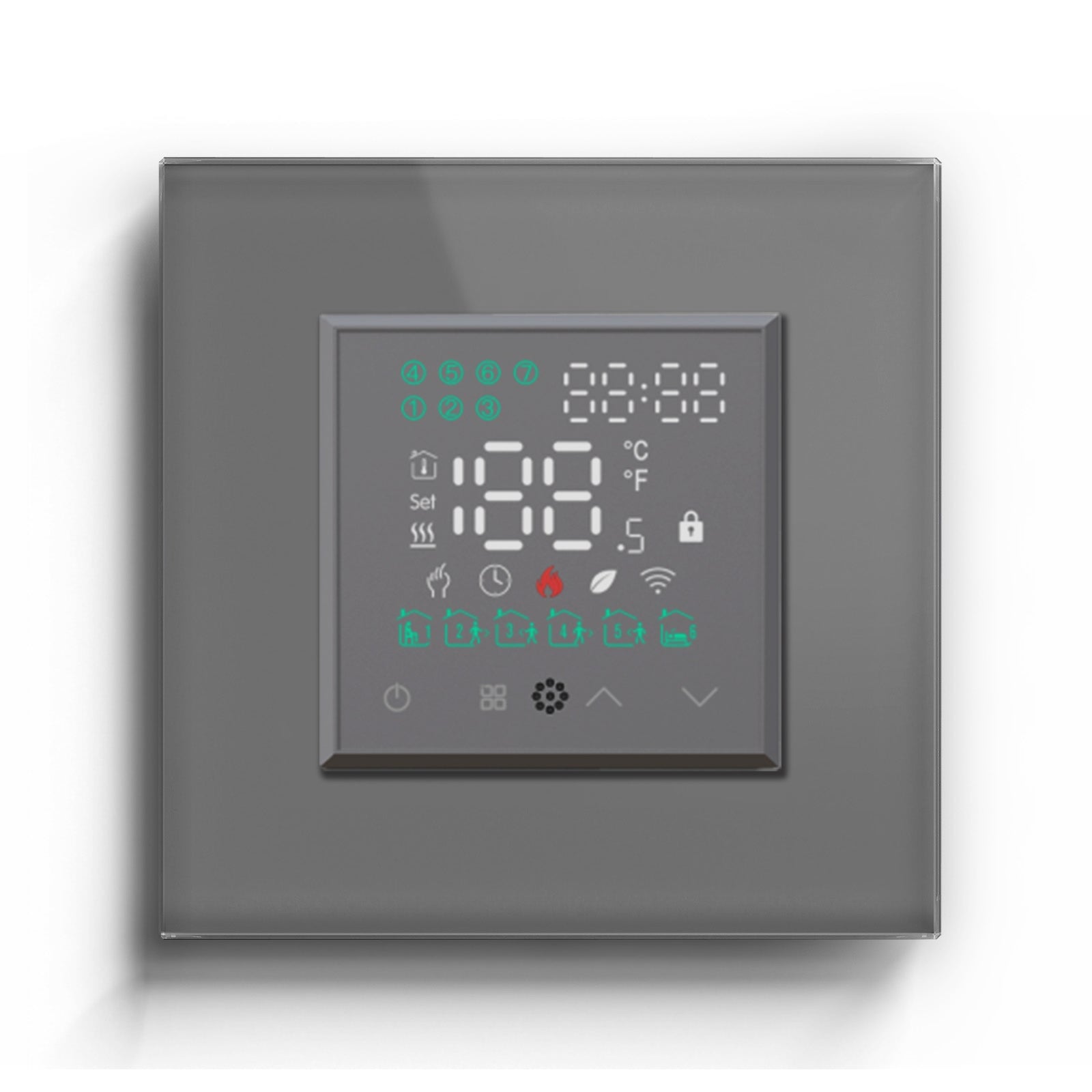

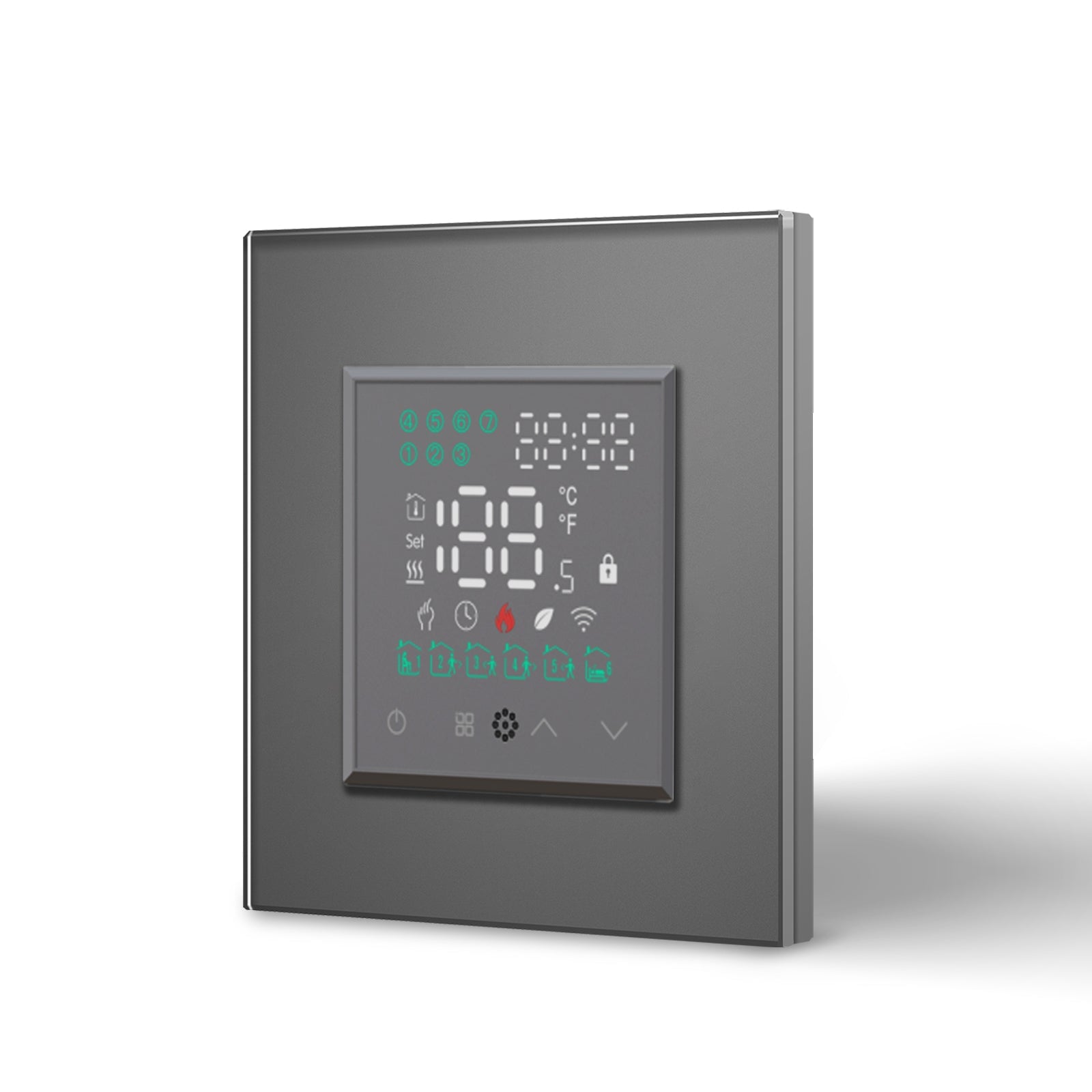

  3. Integrated LED Display with Touch Control
    The integrated LED negative display provides clear temperature information, while capacitive touch keys offer intuitive operation. The PC+ABS flame-retardant engineering plastic panel delivers a practical, modern design for everyday use.
  4. 5+2 Weekly Programmable Heating
    Set a personalized heating schedule with five weekday settings and separate Saturday and Sunday programs. With up to four programmable time periods per day, you can tailor heating to your routine and help avoid unnecessary heating.
  5. Compatible with Multiple Heating Systems & Voice Control
    Select the appropriate model for compatible electric floor heating, water-based heating, or boiler applications. The thermostat supports compatible Amazon Alexa and Google Home configurations for voice control. Check the selected version’s wiring and electrical specifications before installation.

Spec

Product Introduction:
Brand Name:
BSEED
current:
50/60Hz
Max. Strom:
5A(water heating/water boiler/gas boiler) 16A (electric heating)
Max. Spannung:
90-240V (AC)
Sensor:
NTC
Temperature Error:
±0.5℃
Time Error:
<1%
Temperature Control Range:
5~35℃
Screen:
negative LCD screen
Key type:
Capacitive Touch Key
Wireless Consumption:
≤0.5W
Power Consumption:
<1.5W
Shell Material:
PC+ABS (flame retardant)
Ambient /Humidity:
5~95%RH (non condensing)
Working Temperature:
0~45℃
Waterproof Level:
IP20
WiFi Frequency:
IEEE802.11 b/g/n
WIFI Standard:
Wifi 2.4G Hzb/g/n
APP:
Tuya / Smart Life
Voice Control:
Google Home, Amazon Alexa
Energy Monitoring:
Not Support
Warranty:
1 year
Certification:
CE, RoHS
Module Shape:
Square
Wall Box Type:
Round & Square
Installation Box:
European 503 Box,86 TYPE Box
Wall Box Depth:
≥40mm
Wall Box Diameter::
≥60mm

Certificate

CE Certification Certificate
RoHS Certification Certificate

Manual & More

Simple Operation And Easy Installation
Step1 Assemble insert parts and metal plate (note: push the insert parts into metal plate from the front side).

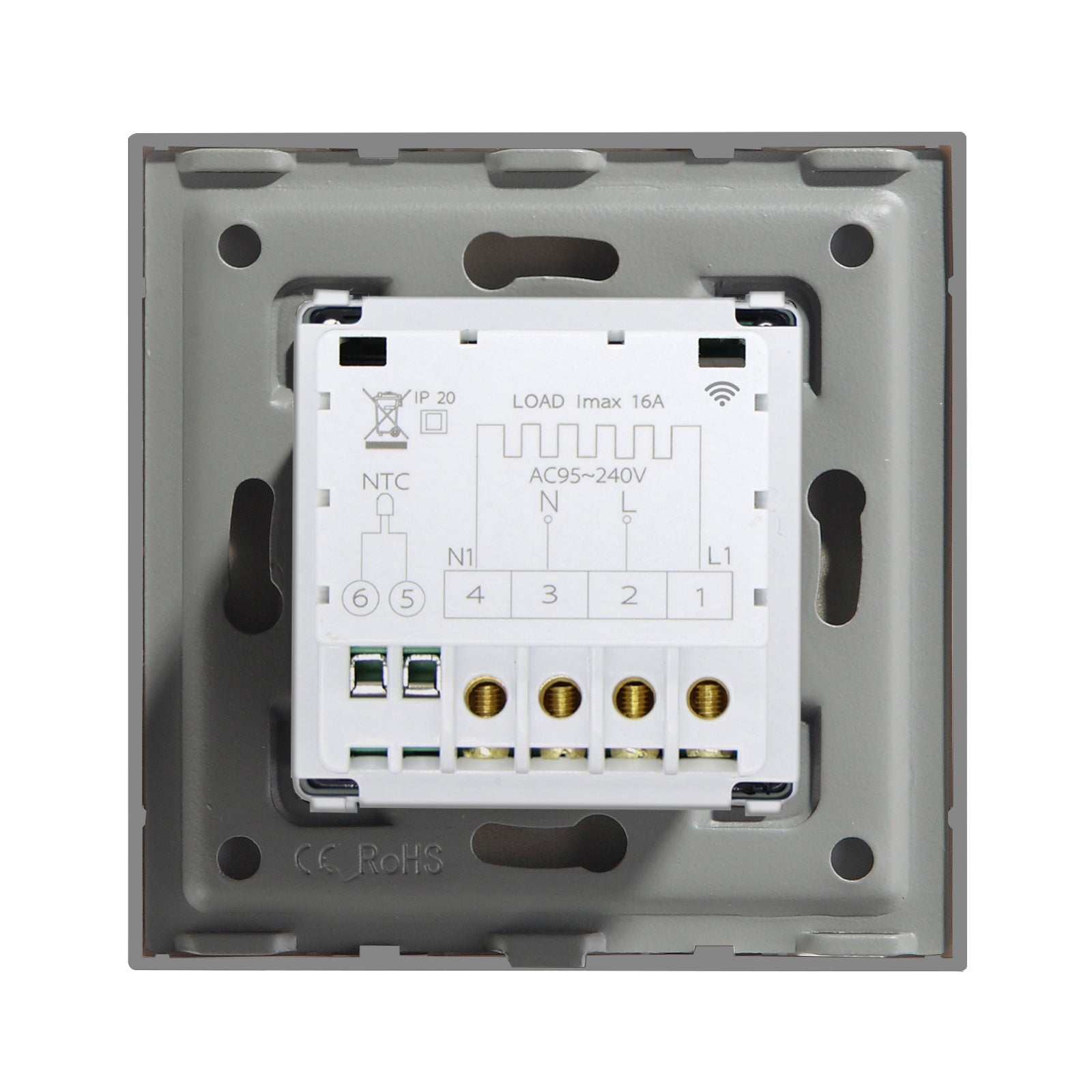

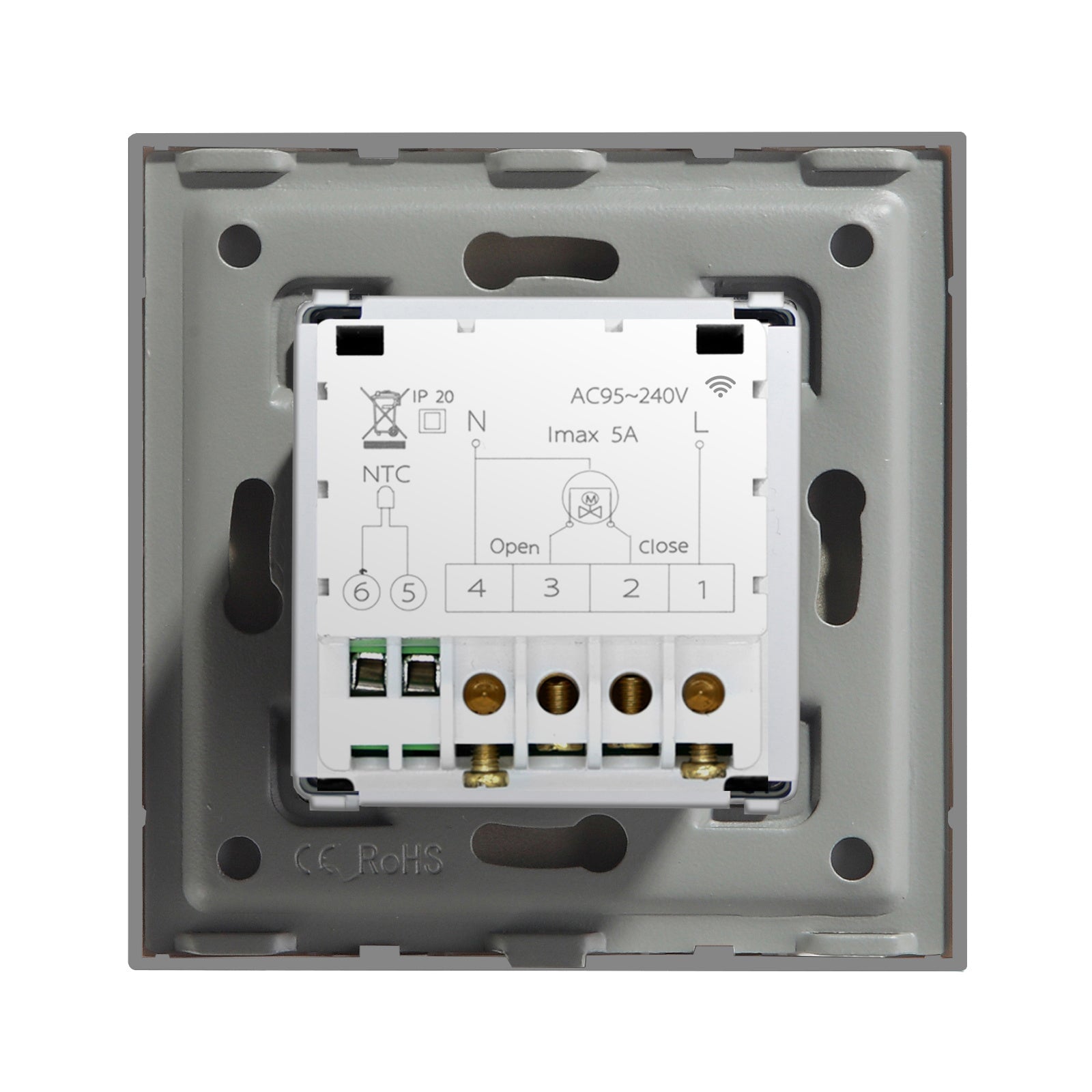

Step2 Follow the wiring instructions to connect the wires.
Step3 Screw to fix the switch to the wall box.
Step4 Push the glass panel onto the device and finish the installation.
Product Installation Video Tutorial
Download
Product manual download

Packing List

BSEED Melody Smart WiFi Touch LED Screen Floor Heating Room Thermostat Controller Backlight Thermostats Bseedswitch Black Boiler
Product * 1
Free
Screw Spike * 2
Free
User Manual * 1
Free
Package * 1
Same series recommendation
€32.34
€23.64
€25.39
€38.86
€21.11
€19.00
SHOW MORE
SHOW MORE

How to choose?

How to install a floor thermostat: Connect the wires correctly according to the instructions.
How to distinguish the types of floor heaters: Underfloor heating systems are categorized into electric, water-based, and boiler-based systems. The primary way to differentiate them is by examining the heating device installed under the floor. Electric heating systems are suitable for underfloor installations such as heating cables, heating films, heating tiles, and thermal mural systems. Water-based systems are used to connect to NC/NO type actuator systems. Boiler-based systems are used to control the boiler heaters.
What are the differences between different heating systems: Electric heating heats up and dissipates heat quickly, making it suitable for small areas and localized heating. Installation is simple and maintenance is convenient.
Do you need more help?
HELP CENTER
Overview
FAQ
Reviews

Back Box For Switch

Fixed into a standard 60mm mounting wall box. The depth of the mounting box should be at least 35mm.

A selection of square boxes

A selection of square boxes

Round box

70mm*63mm*65mm

Square box

74mm*74mm*58mm

FAQs

Does it support temperature control for both heating and cooling?
Not supported. Standard thermostats only support heating; they do not support cooling. If you require a thermostat with cooling functionality, please purchase the 'W-BHT-006-GAW-FL' model, the Wi-Fi version.
What type of thermostat should I buy?
Thermostats typically support boilers, underfloor heating and electric heating. With electric heating, heating cables are usually laid under the floor, and an additional sensor is required. With underfloor heating, water pipes are usually laid under the floor, and the space is heated via a water circulation system. If you are unsure which type you have, please send your thermostat wiring diagram to our customer service team so they can help you confirm this.
Can an underfloor heating thermostat be used to control an air conditioner?
No. The underfloor heating thermostat can only be used to control underfloor heating. If you require an air conditioning thermostat, please purchase the dedicated model ‘W-BAC-3000’.
Do your products comply with EU standards?
Yes. Our thermostat products carry CE and RoHS certification, as well as test reports.
