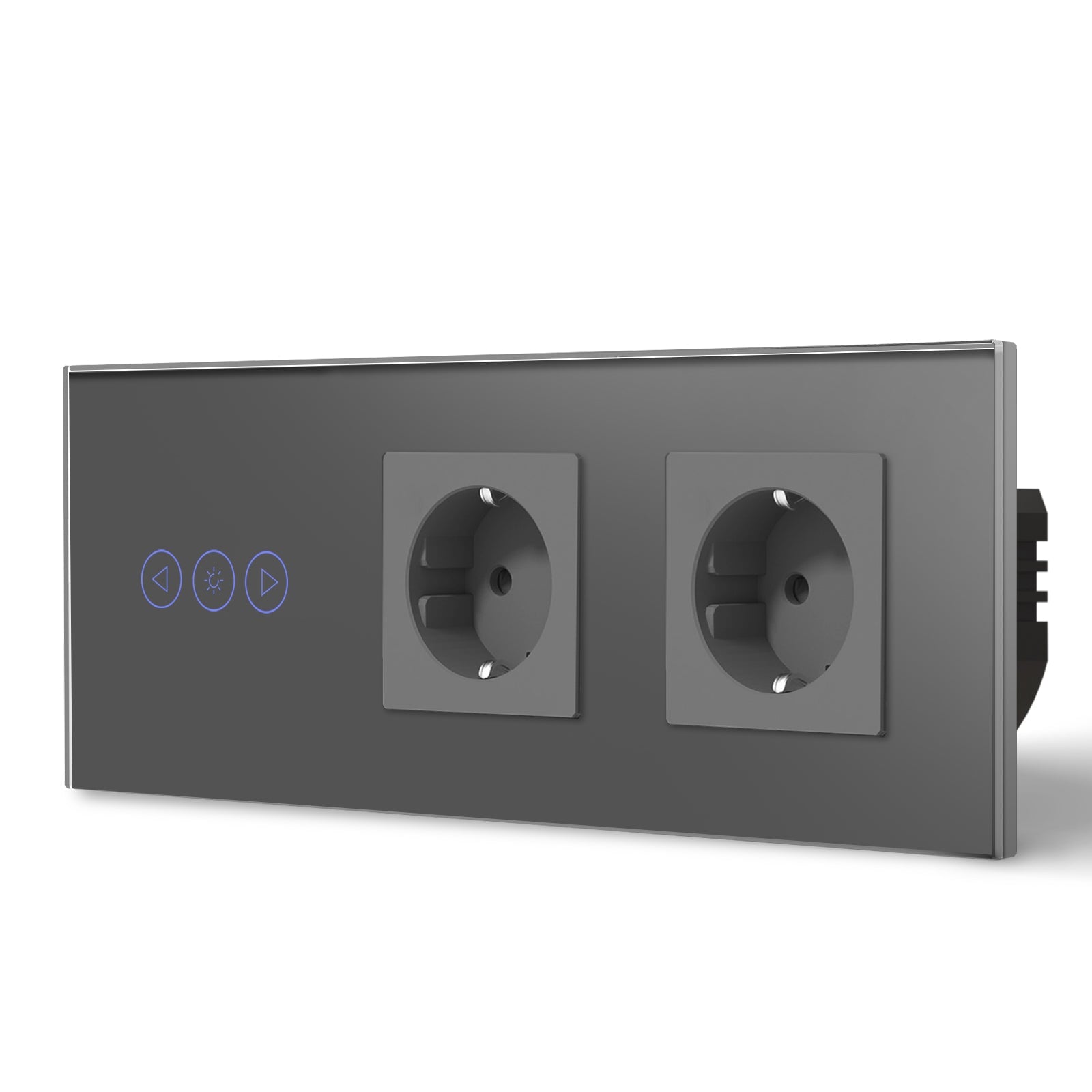

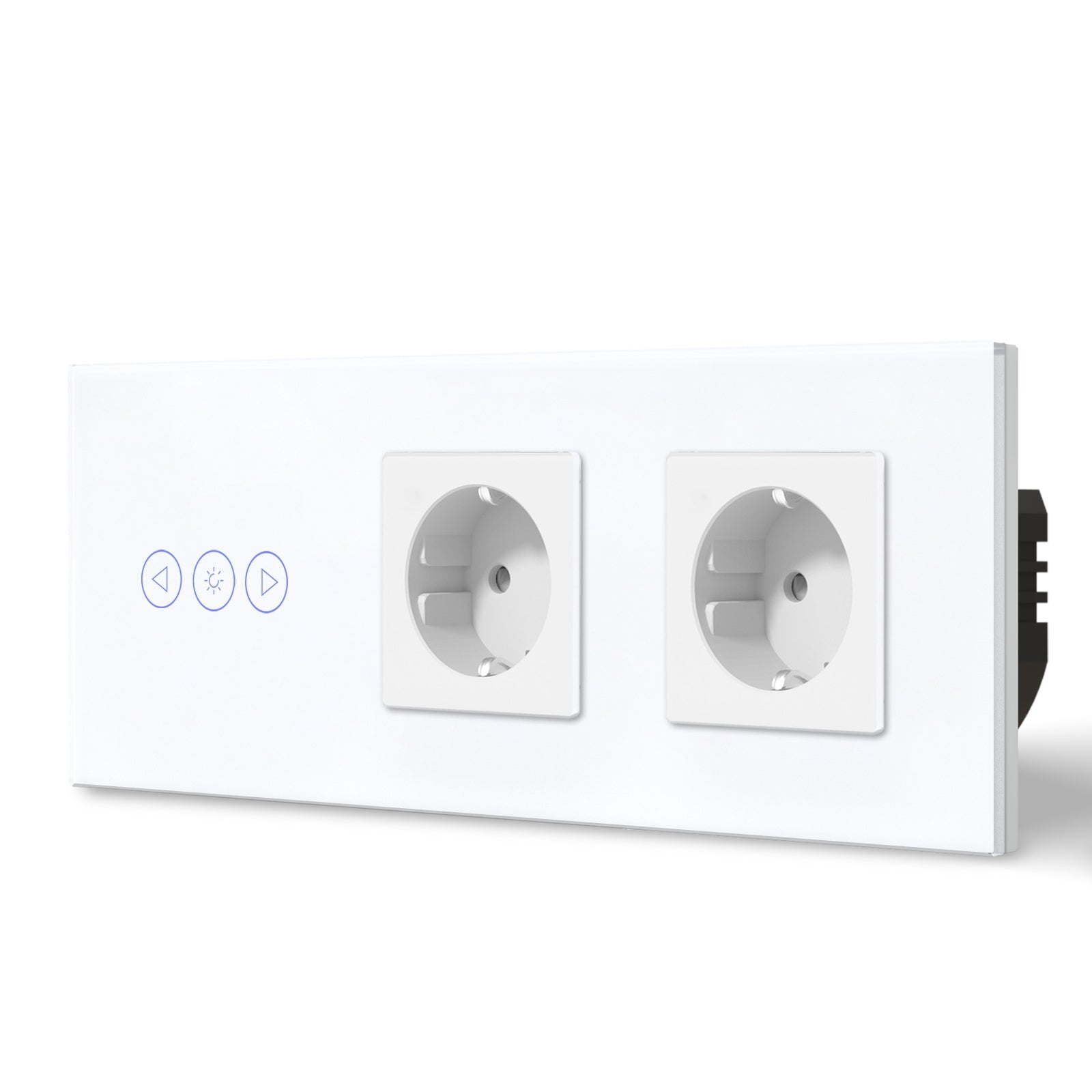

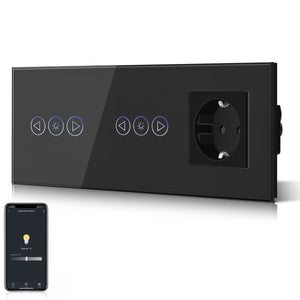

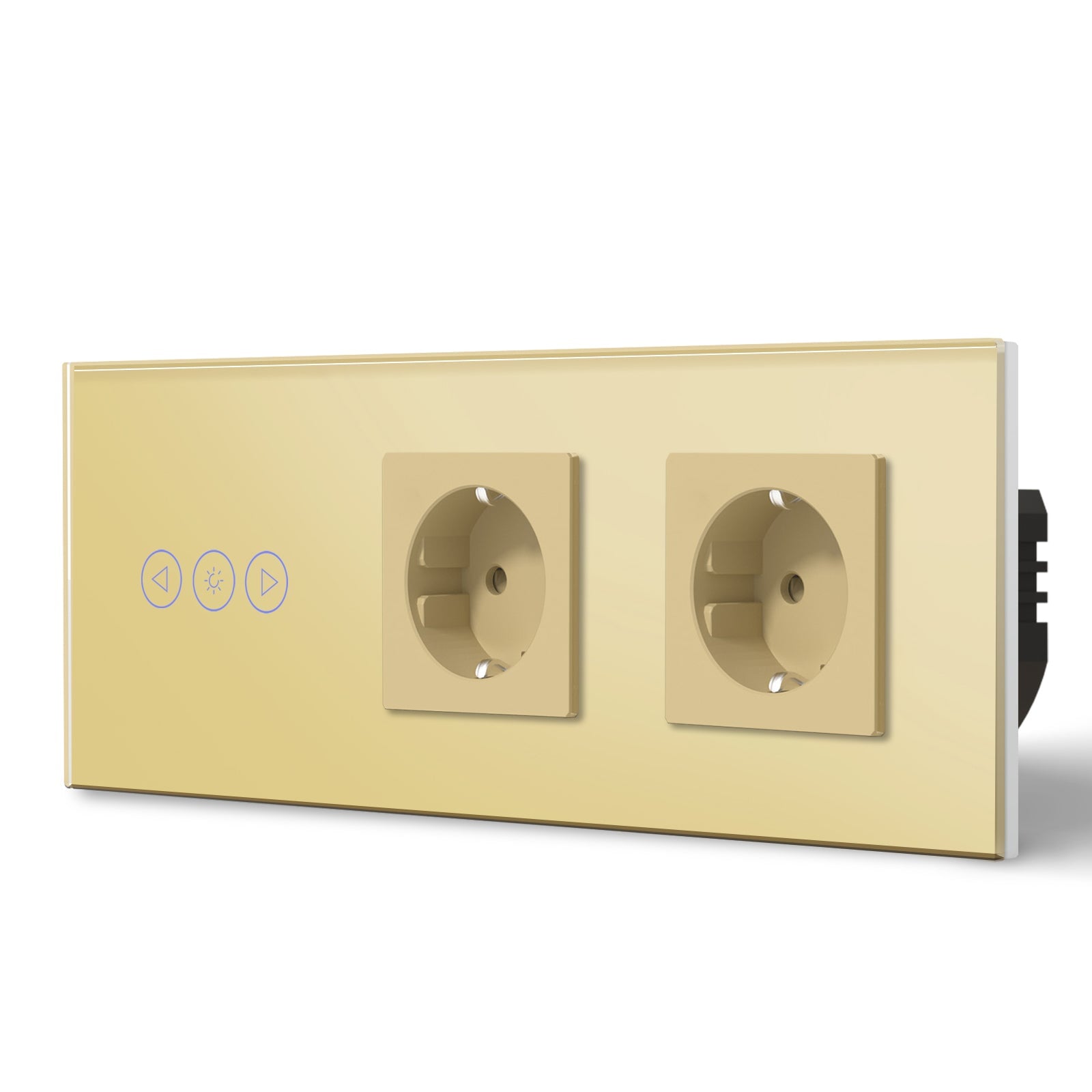

BSEED Melody Smart WiFi Dimmer Light Switch With Normal EU Socket Double Light Switch with Socket
DISCOUNT CODE
DISCOUNT CODE
10%
OFF
Order over €299
ORDIN10
COPY
COPIED
15%
OFF
Order over €499
ORDIN15
COPY
COPIED
18%
OFF
Order over €999
ORDIN18
COPY
COPIED
Color:Black
Type:Dimmer Switch + Dimmer Switch + Eu Socket
Features
Spec
General Product Specifications
Brand
BSEED
Relative Humidity:
10%~93%
Working Temperature:
-30+70 ℃
Certification:
CE, RoHS
Wire:
Need Neutral Wire
Module Shape:
Round
Wall Box Type:
Round & Square

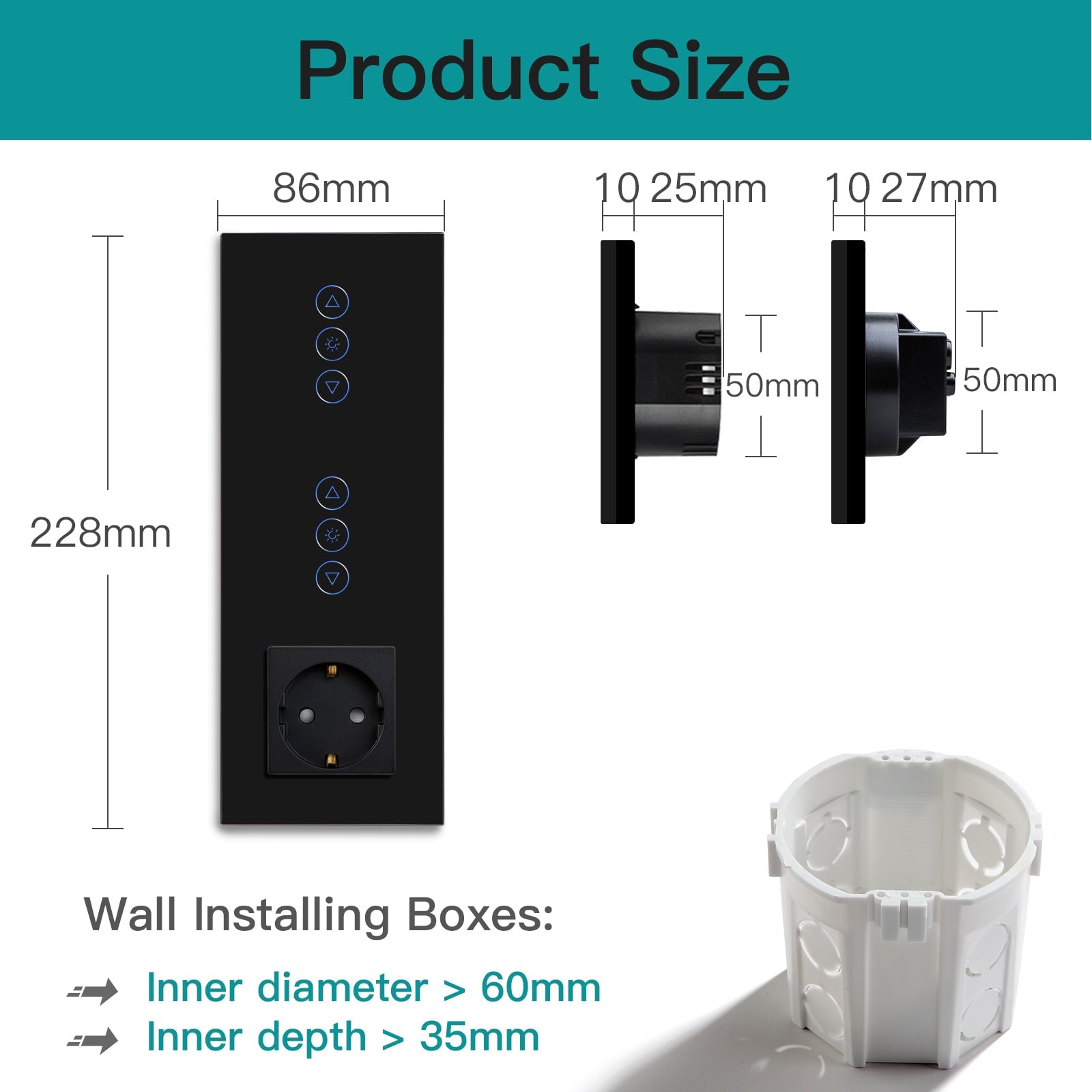

Wall box depth:
≥40mm
Wall box width:
≥60mm
Switch Specifications
Lamp:
FPC leading edge dimming lamps
Incompatible lighting equipment:
LED strips, multiple light bulbs
Lamp type:
Trial dimmable LED (5-200W), Halogen (5-700W), Incandescent(5-700W)
Lamp Power:
>5W
current
10A
Reted Voltage:
110-240V AC
Wired:
Neutral wire,live wire, L1 wire
Load:
3-150W for LED lamp,3-500W for resistive load
Wireless Consumption:
≤ 0.2W
WiFi Frequency:
IEEE802.11 b/g/n
WIFI Standard:
Wifi 2.4G Hzb/g/n
APP:
Tuya / Smart Life
Voice Control:
Google Home, Amazon Alexa
BackLight:
ON-light Blue, OFF-Weak Blue
Socket Specifications
current:
16A
Reted Voltage:
90-250V AC
Wired:
Neutral wire, Live wire, Earth wire
Certificate
Manual & More

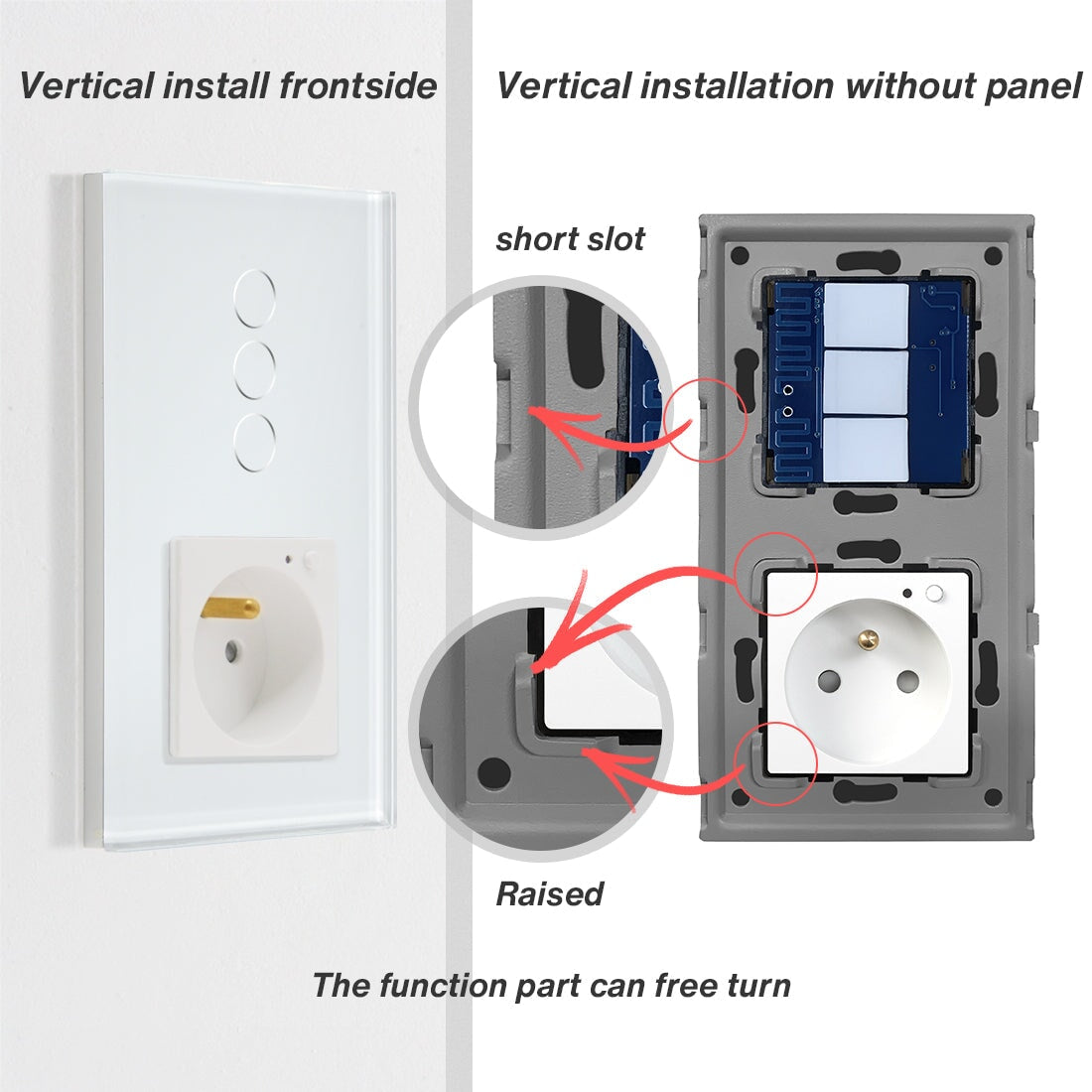

Simple Operation And Easy Installation
Step1 Assemble insert parts and metal plate (note: push the insert parts into metal plate from the front side).
Step2 Follow the wiring instructions to connect the wires.
Step3 Screw to fix the switch to the wall box.
Step4 Push the glass panel onto the device and finish the installation.
Product Installation Video Tutorial
Download
Packing List
Product * 1
Screw Spike * 2
User Manual * 1
Package * 1
Same series recommendation
€19.38
€25.39
€17.21
€60.17
€9.82
€24.70
SHOW MORE
SHOW MORE
Overview
FAQ
Reviews
Home Automation Integration
With other smart devices, you can achieve more automation and scene control.
Door Sensor
Light Up your home when you open the door
Motion Sensor
Light the room when you move
Scheduled
Schedule your switch to operate at specific times

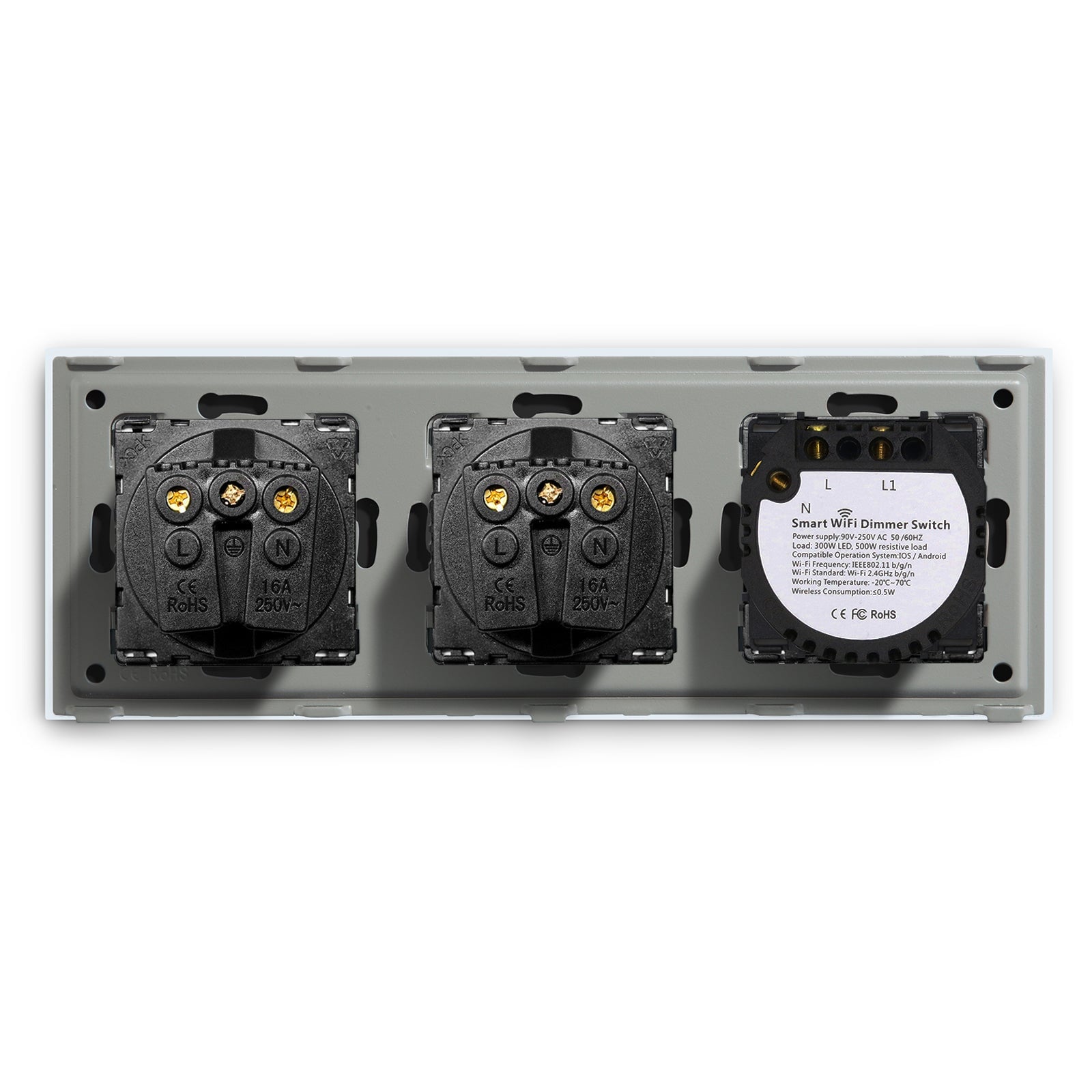

How to wire light dimmer switch
The intelligent dimming light switch allows for two-way control and can be installed in the living room or bedside to control one light with two switches. But there may be delays
Switch Wiring
Switch Wiring
Round box
Wall box width ≥ 60mm, wall box depth ≥ 40mm
Square box
Wall box width ≥ 60mm, wall box depth ≥ 40mm
FAQs
Which bulbs work with this dimmer switch?
It supports dimmable incandescent (7W+), dimmable halogen, and dimmable LED bulbs. Just a heads-up — it won't work with string lights, spotlights, ceiling lights, or any non-dimmable bulbs.
Why is my switch's touchscreen unresponsive or laggy, even with a compatible bulb?
This is usually due to poor panel contact or an upside-down mounting plate. Please cut power, remove the panel for 3 minutes, reinstall it, restore power, and retest.
Why is my dimmable light flickering?
Usually caused by one of these: a non-dimmable bulb, wattage under 7W, multiple bulbs on one switch, or an adapter disconnection. Double-check all four.
Why is my switch loose or won't snap into the mental plate properly?
The metal mounting bracket is likely installed upside down. Flip it over so the plate can align and lock into place.
More Information
If the issue persists, please contact us via the live chat page or email us at shopify@bseed.com.
