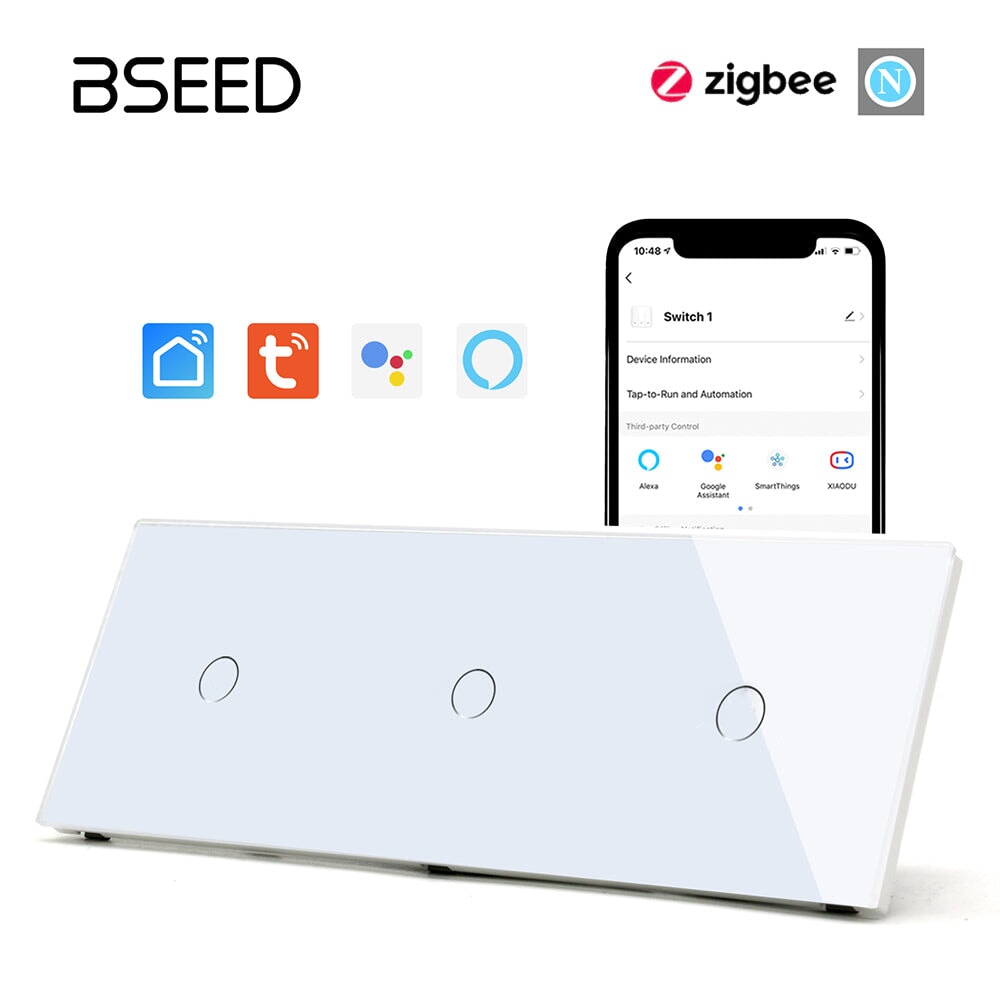

BSEED Zigbee Light Switches Triple 1/2/3 Gang Smart Wall Switches Wall Touch Switch ZigBee Smart Life Tuya Google Alexa Glass

BSEED Zigbee Light Switches Triple 1/2/3Gang Smart Wall Switches Wall Touch Switch ZigBee Smart Life Tuya Google Alexa Glass
Features:
1. Smart Design Can Use Wifi Control.
2. Popular Colors are available: Black, White, Golden.
3. The button will glow at night, making it easier to find.
4. Waterproof and Resistance Scratch. Protection Against Electric Shock.
5. Different quality testing during production, to ensure each switch work well before it is delivered to customers.
6. Elegant look, Suited greatly with many modern decor styles. It can be applied to drawing room, bedroom, corridor, kitchen, bathroom, Office and so on.
7.APP INSTALLATION:

Download The Tuya Or Smart Life App To Your Smartphone Or Tablet. The App Can Be Downloaded From Apple App Store or Google Play, Then Connect Your App With Amazon Alexa Or Goggle Home Which Enable You To Voice Control Your Lights And Appliances.

Product Introduction:
ZigBee Touch Switch Technical Specifications
Max. Strom: 10A(switch) 16A(socket)
Load: 1000W/Gang
Wireless consumption: ≤0.2W
Max. Spannung: 90 ~ 250V
Relative Humidity:10% ~ 93%
Working Temperature: -20 ℃~+70℃
Zertifizierung: CE,RoHS
Wireless Type: ZigBee 2.4GHz
Wireless Standard: IEEE 802 15.4
APP: Tuya/Smart Life
Voice Control: Google Home, Amazon Alexa
Wire: Need Neutral Wire
Back Light: ON-light Blue OFF-Weak Blue
Module shape: Round
Switch Wall Box: Ø = 75mm,Width=71mm, Depth ≥ 35mm
FUNCTION:
Our ZigBee Touch Switch Can Be Controlled Through Your Smartphone And All Support Google Home, Amazon Alexa, and Tuya App.
BACKLIGHT:
Bseed ZigBee Touch Switches Have A Blue LED Light on the Front Panel Of Each Gang Which Ensure The Visibility In the Dark And is Easy To Find At Night.
BULBS:
The Smart Touch Switch is Compatible With LED Light Bulbs, Incandescent, Halogen, Fluorescent, and Compact Fluorescent Bulbs. The ZigBee Smart Switch(required A Neutral Wire To Install).
OTHER FUNCTIONS:

can be set in the APP timing, countdown, multi-control association and many other functions
INSTALLATION:
Connect 3 Wires to Install The Wifi Wall Touch Switch In Your Wall Mounted Box As Bellow:
The Brown Or Red (Live) Wire Goes Into a Brass Screw L Or The Hole In The Back Of The Device.
The Blue Or Black (Neutral) Wire Goes Into the Brass Skew N Or The Hole N In The Back Of The Device. The Panel Can Be Reassembled Easily For The Change Of Unit Part If Needed (Neutral Wire Required).
APP INSTALLATION:
Download The Tuya Or Smart Life App To Your Smartphone Or Tablet. The App Can Be Downloaded From Apple App Store or Google Play, Then Connect Your App With Amazon Alexa Or Google Home Which Enable You To Voice Control Your Lights And Appliances.
NOTE1:
Always turn off the main power during installation until the panel installation is complete, and then turn it on. If you test the switch by touching the directly (without the cover panel), turn it off for 5 minutes, place it on the control panel, and use it.
F&A
Q: Does your Zigbee touch light switch need a neutral wire to install?
A: Yes, it needs a neutral wire to install.

Q: Does your Wifi touch light switch can work with the Zigbee switch to control the same light?
A: Yes, Wifi switch can work with Zigbee switch together.

Q: Does your Zigbee light switch can work with Smart Life Tuya or Google Alexa?
A: Yes, it can work with them.

Q: Do you offer a 2/3/4-way Zigbee touch light switch?
A: Yes, we offer a 2/3/4-way Zigbee touch switch. However, the wiring of the Zigbee neutral line switch and single live line switch is different. And you must at least buy 2/3/4 pieces of zigbee switches. ( APP uses multi-control association function)

Q: Does the ZigBee switch need to be connected to the gateway?
A: Yes, the Zigbee switch needs to connect to the tuya gateway.

Q: Why does Zigbee switch not work when it is connected?
A: First, please check your wiring. Our wiring diagram is in the details. Then check whether the iron plate is installed correctly. Finally, check whether your switch matches. If there is no problem, please contact us, and send you the video.

Q: Does your Zigbee touch light switch have a backlight?
A: The blue backlight will be on when the wiring is successful. Allowing you to notice Our touch switch clearly in the dark.

Q: Does our switches can install vertically or Horizontally for 157mm/228mm glass panels？
A: Yes, we can install it in different ways, but you will see the small holes. (The small holes used to open the glass cover)
